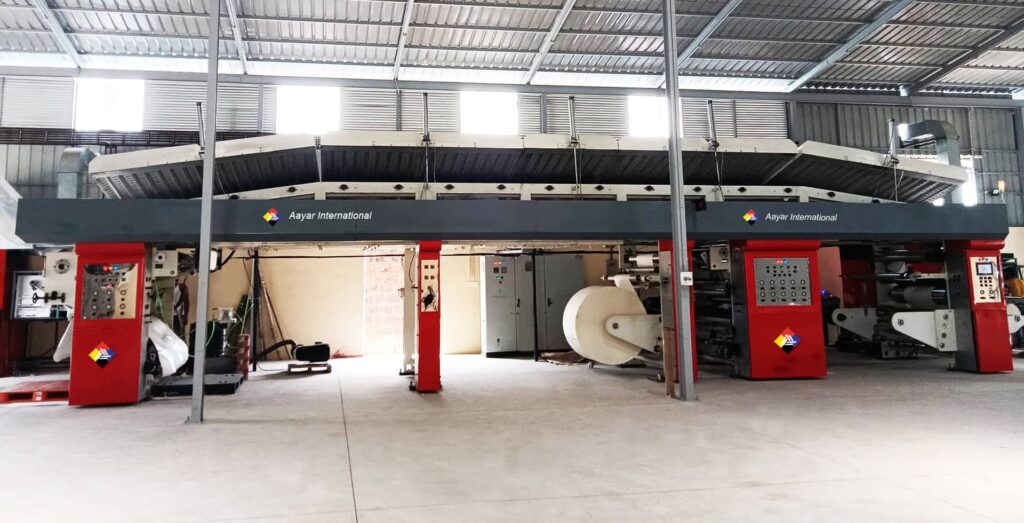

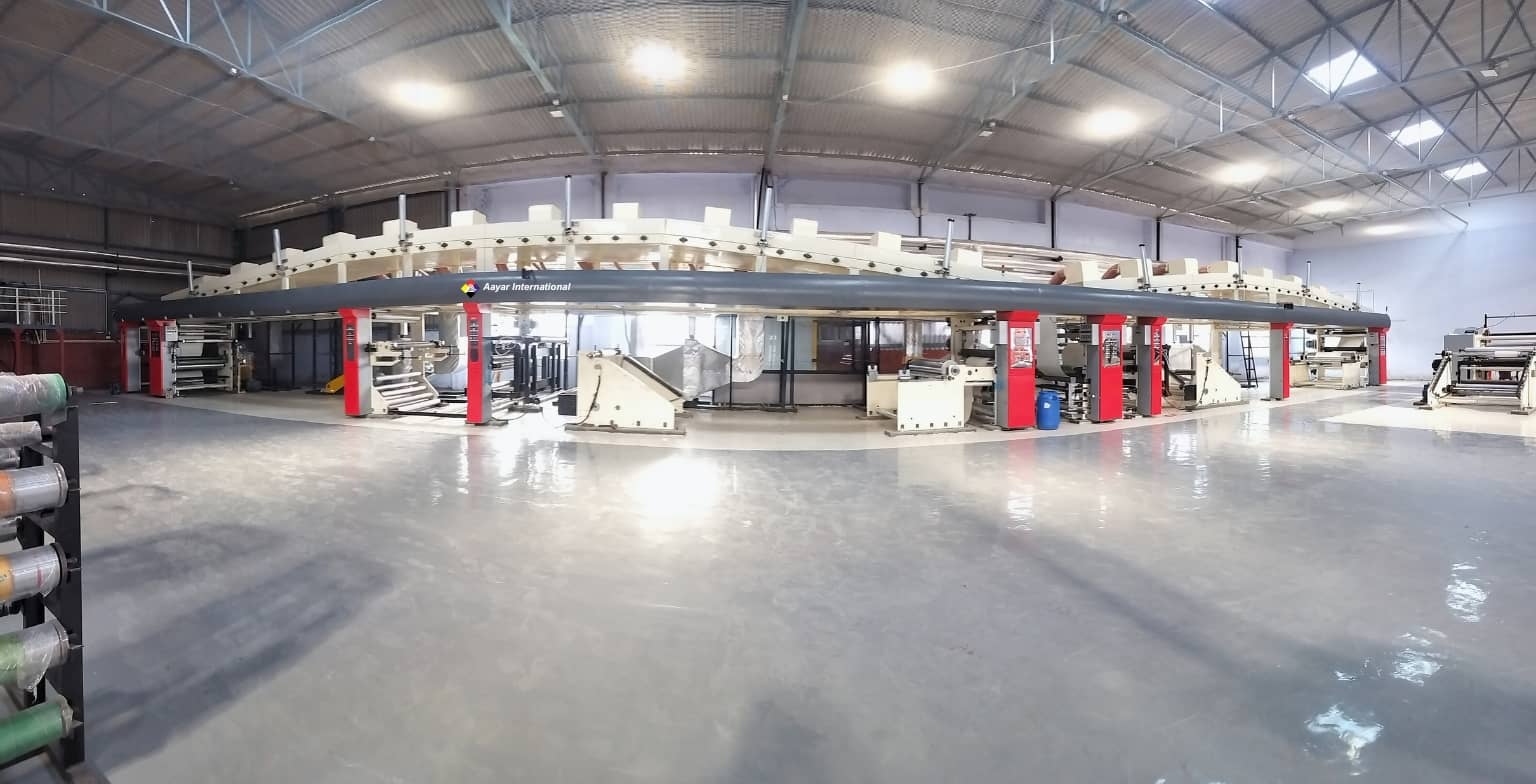

Paper Coating

The machine has been specifically designed, for Water Based Coating Applications like..
a) Paper Cup Coating
b) Water Based Barrier Coating
c. Sublimation Paper Coating.
d. Florescent Paper Coating
e. Thermal Paper Coating
f. Water Based VMCH Coating ON Aluminum foil
g. VCA Coating
&
Many more Water Based Applications.
By perfect integration of the latest generation of automation electronics and mechanical components, the machine is designed to deliver optimum performance and productivity with minimum left to right GSM Variation.

Key Features:

⦁ High productivity,
⦁ Easy operating,
⦁ Optimum energy consumption
⦁ Ability to handle wide range of Water Based  Coating jobs

Standard Technical Specification
Machine Type Paper Coating
Machine Model POLESTAR COAT-PC
Configuration Three roll / Reverse Gravure / Kiss / Air Knife / Mayerbar / Chamber Dr.Blade
Max. web width 1000mm - 3000mm.
Min. web width 400 mm.
Max. Reel Diameter 800mm - 1250mm at unwind & rewind.
Core Diameter 76mm, 152mm
Max. weight of reel 800kgs - 1500kgs.
Heating tunnel chamber 8 - 20nos.
Tunnel Length 12 - 30 mtr
Control System

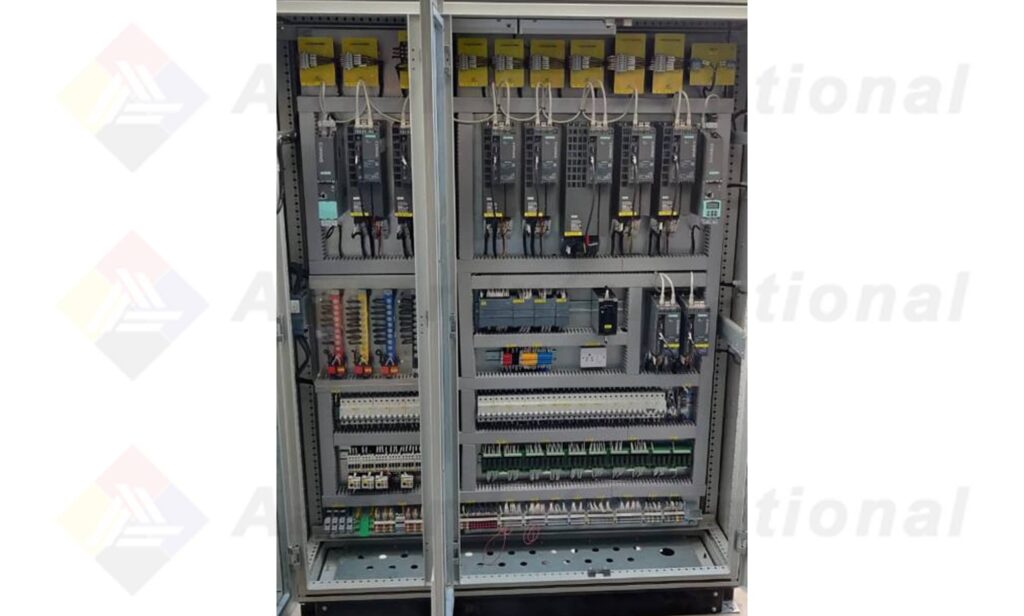

⦁ Servo cum AC Drive based closed loop controller for web handling by
using latest generation of electronics. Entire machine operation is
controlled and supervised by high performance motion controller having its
own intelligent software.
⦁ Master operator control panel consists of touch screen (HMI) operating
interface that facilitates ease in operation. Safety of operator, machine and
electronic modules are achieved with the help of necessary hardware
protection and intelligent software routines.

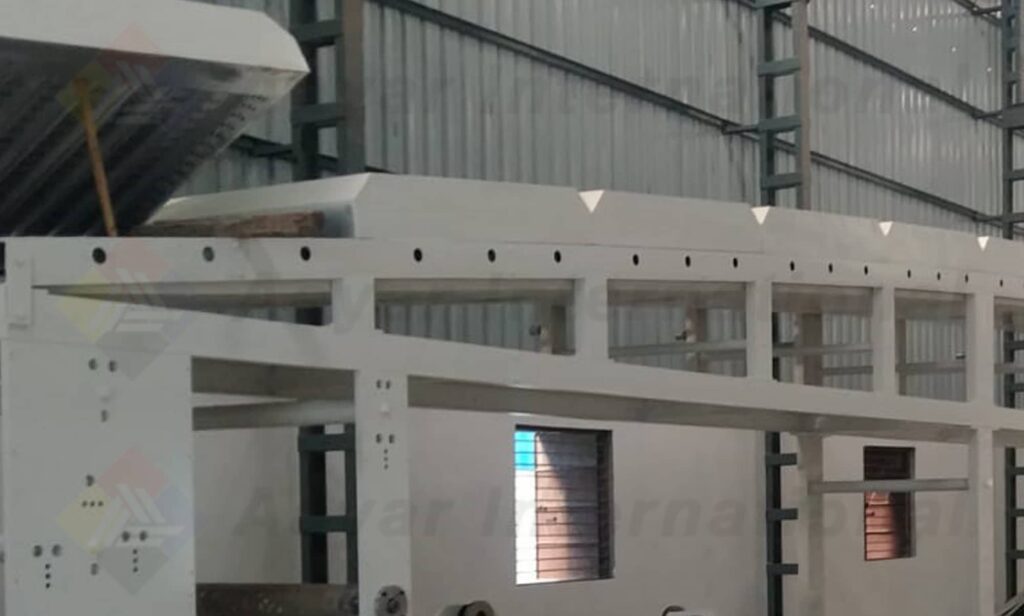

The sturdy heavy-duty frame structure designed carefully and methodically
considering the precise accuracy to suit the specified running optimum
speed over long dependable life. The precise frame mounting, linking and
its balancing ensures less vibration and increase its reliability and
durability.

⦁ Exceptionally designed, and precisely machined, strong and robust steel frame structure, maintains accuracy over long dependable life and ensures reduced vibration even with optimum line speed.

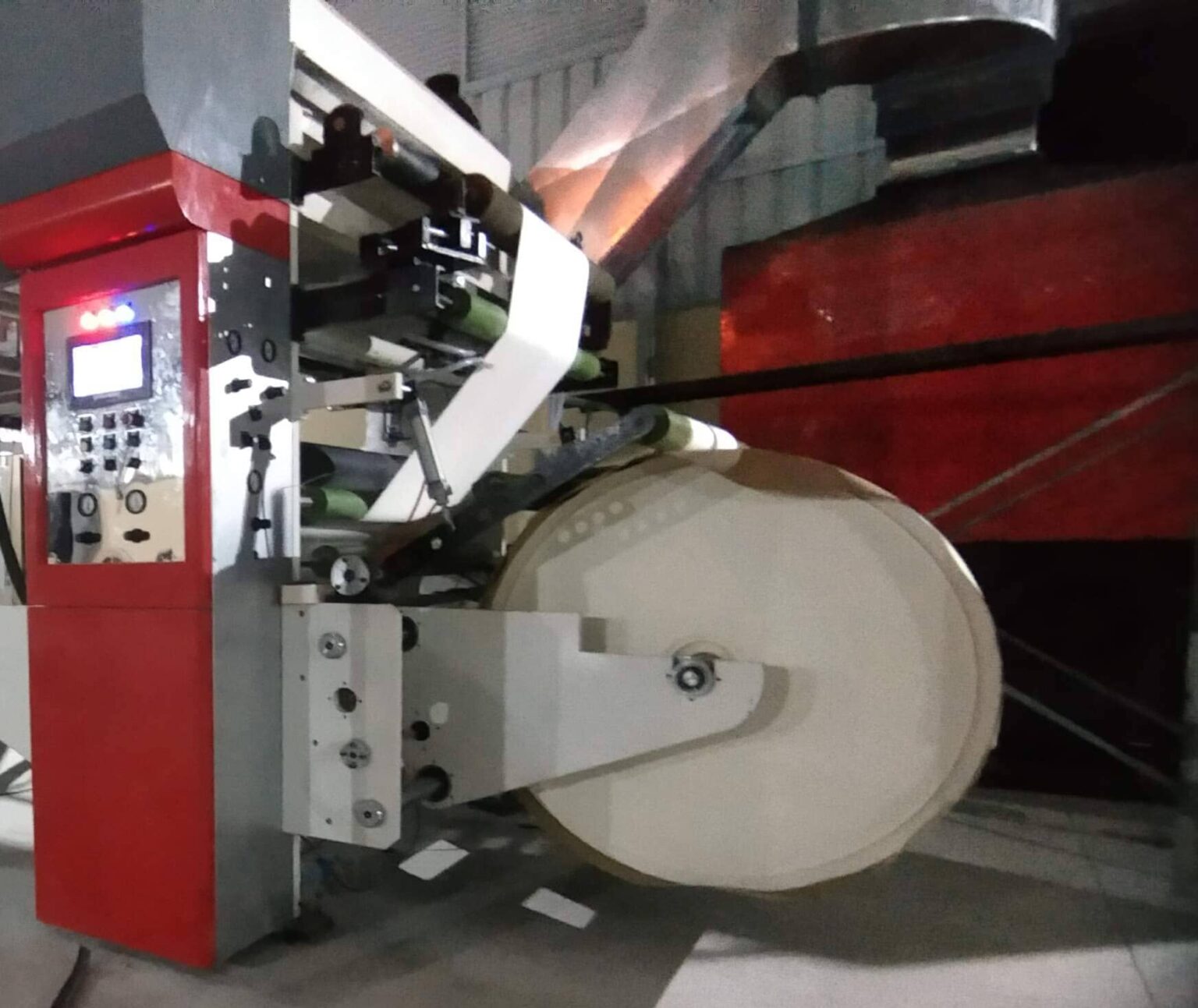

Primer Unit system pulls the substrate from unwinding station and at the same time retains required set tension between Shellac and Coating unit precisely and isolates the Shellac unit from tension disturbance of the unwinding zone.
Composition:
⦁ ⦁ Load cell base roller for auto tension feedback
⦁ AC motor complete with related assembly
⦁ NIP Rubber Roller with pneumatically adjustable pressure.

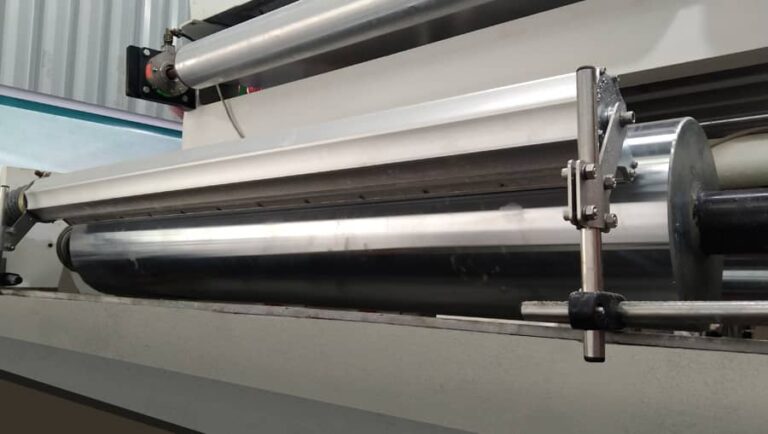

⦁ Specially designed pneumatically operated doctor blade assembly ensures a straight profile of the blade resulting in lesser blade pressure, better printing quality and longer cylinder life.
⦁ Gravure system at coating unit.
⦁ Flame proof Motor with adhesive pump and SS tank. for Adhesive viscosity maintain

⦁ Exceptionally designed, and precisely machined, strong and robust steel frame structure, maintains accuracy over long dependable life and ensures reduced vibration even with optimum line speed.
Primer Unit system pulls the substrate from unwinding station and at the same time retains required set tension between Shellac and Coating unit precisely and isolates the Shellac unit from tension disturbance of the unwinding zone.
Composition:
⦁ ⦁ Load cell base roller for auto tension feedback
⦁ AC motor complete with related assembly
⦁ NIP Rubber Roller with pneumatically adjustable pressure.
⦁ Specially designed pneumatically operated doctor blade assembly ensures a straight profile of the blade resulting in lesser blade pressure, better printing quality and longer cylinder life.
⦁ Gravure system at coating unit.
⦁ Flame proof Motor with adhesive pump and SS tank. for Adhesive viscosity maintain

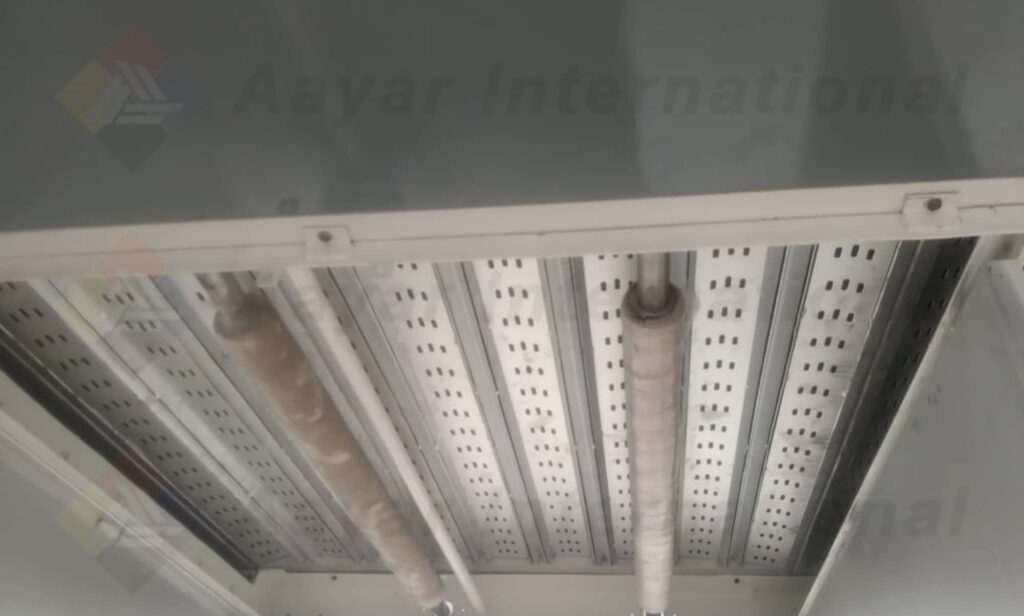

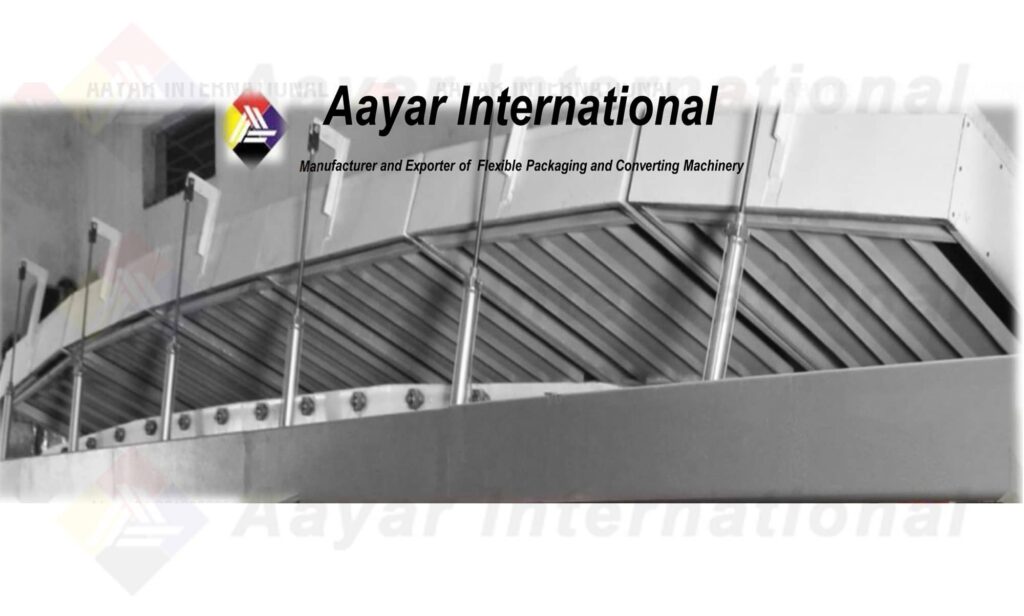

Heating tunnel is divided into Zones. All Drying Zone hinged at rare end and enabled to get opened with the help of pneumatic cylinder. The heating tunnel will be accessible by catwalk throughout tunnel length. Idler rollers are driven by timing belt and pulley. Chrome plated/ Teflon coated idle rollers are dynamically balanced and polished provided in the tunnel to guide the web. Tunnel (which is exposed to the atmosphere) is connected to each compartment is insulated to preserve the heat loss.

All Drying Zone hinged at rare end and enabled to get opened with the help of pneumatic cylinder. The heating tunnel will be accessible by catwalk throughout tunnel length. Idler rollers are driven by timing belt and pulley. Chrome plated/ Teflon coated idle rollers are dynamically balanced and polished provided in the tunnel to guide the web. Tunnel (which is exposed to the atmosphere) is connected to each compartment is insulated to preserve the heat loss.

Adhesive drying is obtained by centrally connected hot air input on the web through air nozzles. The optimized airflow lessens heat consumption and avoids solvent retention in the coated substrates. Solvents evaporation is obtained by air nozzles, blowing air on the web in connection with the idle rollers, in order to ensure the drying, avoiding shaking or deforming of the web itself. The optimized airflow minimizes heat consumption and avoids solvent retention in the printed substrate.

The central exhaust system is controlled by heavy-duty centrifugal exhaust blower to collect solvent contaminated air from all the tunnel units through central ducts/piping fitted with manual adjustable damper.

It is a Steel frame Structure with cross connection tie Bar Plates, Chilling unit ensures that mechatronics are synchronized. Distinctively designed, and precisely machined, strong and robust steel frame structure, maintains accuracy over long durability and ensures reduced vibration even with optimum line speed.

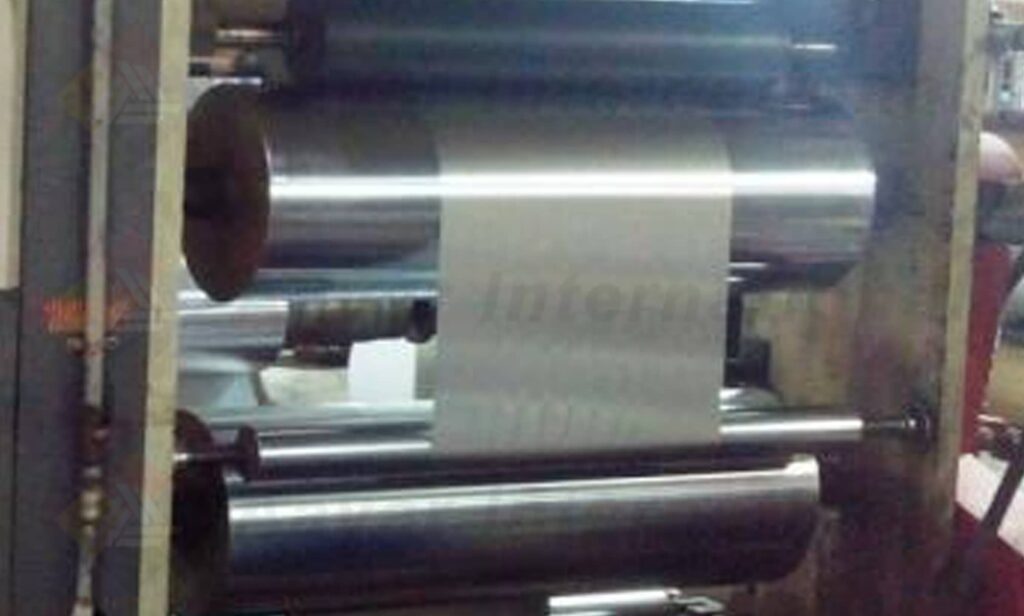

Two chilling rolls are tightly synchronized together with ac motor Driven by AC vector drive. The rotary union is provided to ensure chilled water circulation uniformly.

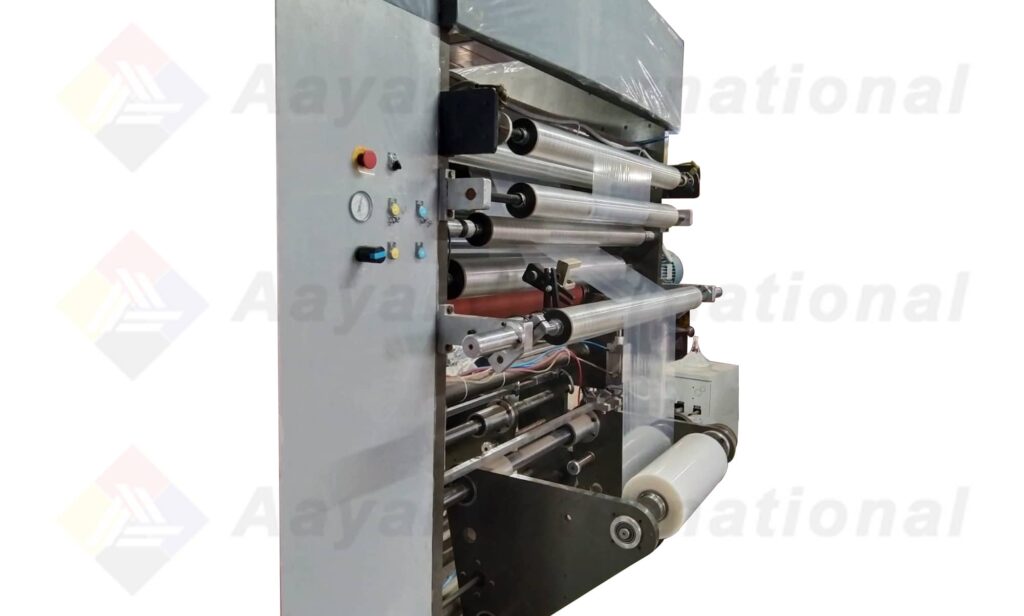

Specially designed, low friction-low inertia, dynamically balanced idle rollers, mounted on low friction bearings to enhance rotational smoothness. Properly grooved, ground and balanced the rollers are made of specially graded anti-corrosion aluminum alloy.
