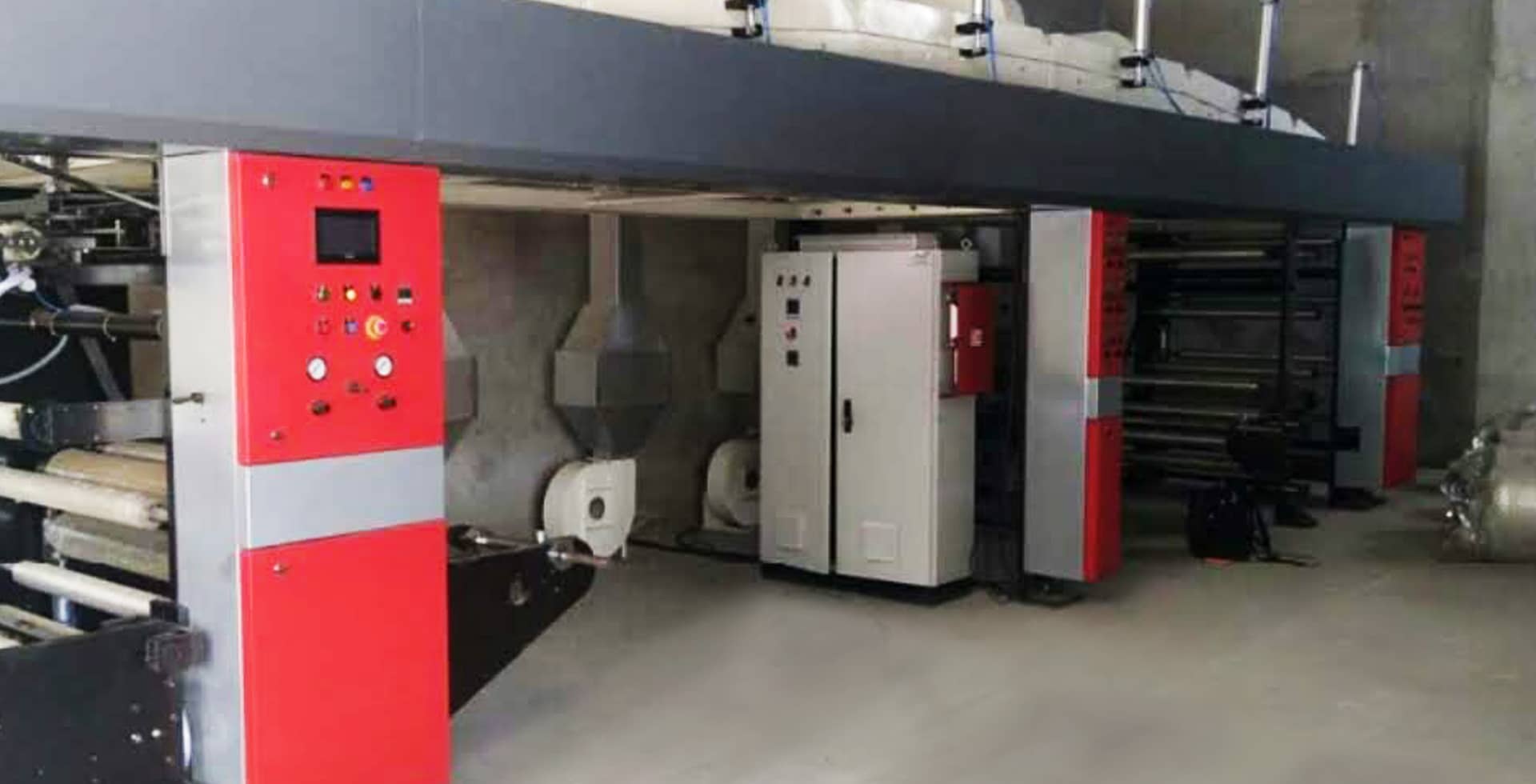

Solvent Based Dry Bond Lamination Machine
Polestar -DL - 150

Polestar -DL- 150

The machine has been specially designed, focusing on various flexible packaging jobs on solvent-based applications over plastic printed or plain films.

High productivity, easy operating, optimum energy consumption and ability to handle wide range of laminating jobs are the key features.

By perfectly integration of the new generation of electronics and ergonomically designed mechanical components, the machine is made to deliver optimum performance and productivity.

Standard Technical Specification
Machine Speed 150m/min
Machine Web Width 750mm to 1500mm
Core Diameter for unwinders 3" (76mm) & 6" (152mm)
Core Diameter 6" (152mm)
Control System

Servo based shut circle regulator for web taking care of by utilizing most recent age of gadgets. Whole machine activity is controlled and manages by elite execution movement regulator having its own wise programming. The master operator control panel has a touch-screen interface that makes it easier to use. Wellbeing of administrator, machine and electronic modules are accomplished with the assistance of important equipment insurance and insightful programming schedules

Unmistakably planned and unequivocally machined, solid and durable, steel outline structure, with hardening tie-poles; maintains accuracy over a long, dependable life and, even at maximum line speed, guarantees less vibration. The structure gives the working area more light. Each component’s mechanical construction, which is subjected to numerous tests, guarantees optimal performance and longer equipment life.

Shaft-less unwind & rewind web tension controlled by using latest generation Servo Motor and Servo Drive The system maintains the set tension precisely throughout the reel run The system mainly composed of AC Servo Drive and Servo Motor, pneumatically loaded low friction dancing roller assembly and load cell for tension feed-back and actual tension display. The unwind & rewind arms move on high precision linear bushings and supported on ground chromeplated steel bars.

The laminator unit includes a warmed chromeplated, ground steel roll, a rider roll, covered with hard elastic and chrome covered steel back-up roller which is driven by pneumatic cylinders which can be changed at the two finishes. the Steel back-up roller is press against the elastic roller for an all out parallelism and to stay away from any elastic roller flexion. The tension on the web that carries the adhesive to the point of lamination can be controlled with great precision because the laminator steel roll is driven by an independent motor that is synchronized with the motor of the applicator unit using load cells.

Specially designed doctor blade group ensures a straight profile of the blade resulting in lesser blade pressure, better printing quality and longer cylinder life.

Coating unit is transmitted by an AC servomotor through a gear Box. Speed can be set by means of push buttons and monitored on the display (touch screen or HMI) The AC servo drive ensures that the set speed ts maintain.

Drying iS obtaining by blowing hot air on the web through air nozzles. The optimized airflow minimizes heat consumption and avoids solvent retention in the laminated substrates Thermic fluid base 8mtrs insulated drying chamber having Four separate zones which consists of Two AC frequency drive controlled blower. thermic fluid heat exchanger, auto temperature controller, air transport duct etc. Four zones pneumatically open able drying hood for web threading and cleaning.
Specially designed, low friction-low inertia, dynamically balanced idle rollers, mounted on low friction bearings to enhance rotational smoothness. Properly grooved, ground and balanced the rollers are made of specially graded anti-corrosion aluminum alloy.
